HYFD LED Belt Light 2 3 4 5 Pin 300V T Shaped Electrical Connector

Shenzhen HUAYI-FADA Technology Co,.LTD

HYFD LED Belt Light 2 3 4 5 Pin 300V T Shaped Electrical Connector

Brand Name : HYFD

Model Number : T02

Certification : CE

Place of Origin : Guangdong, China

MOQ : 200/500

Price : Negotiable

Payment Terms : T/T

Supply Ability : 2000pcs per day

Delivery Time : 5~12 days as per order quantities

Packaging Details : Carton

Number of Pins : 2 pins, 3 pins, 4 pins, 5 pins

Shell Material : Nylon

Color : Black

Warranty : 3 years

Contact Now

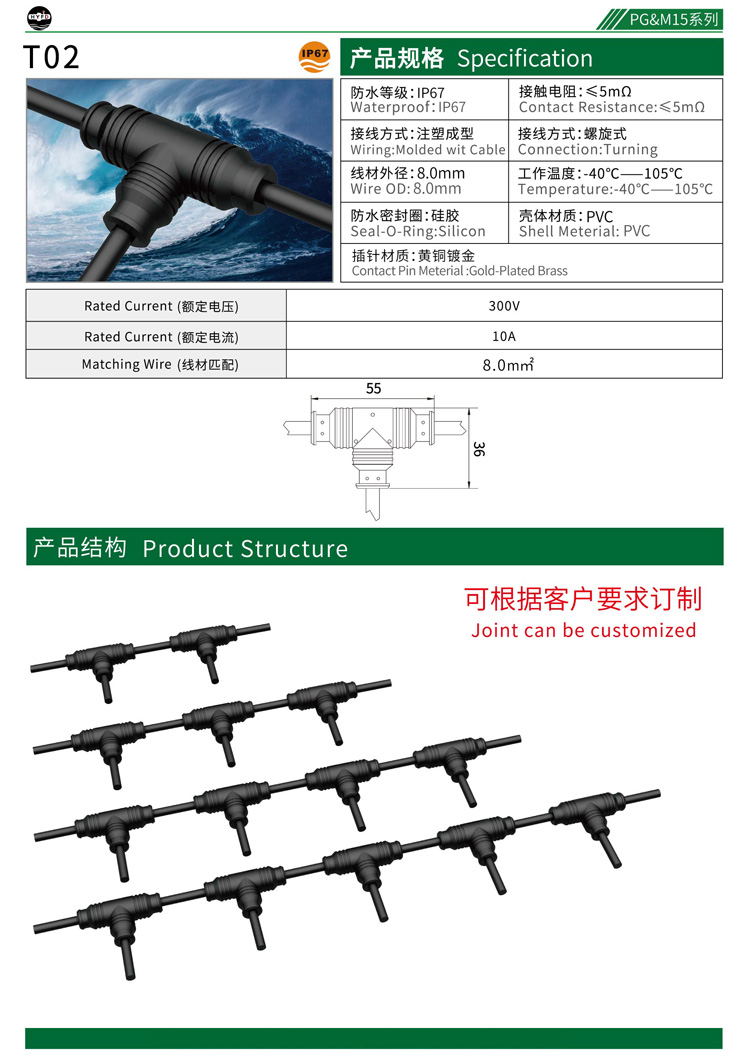

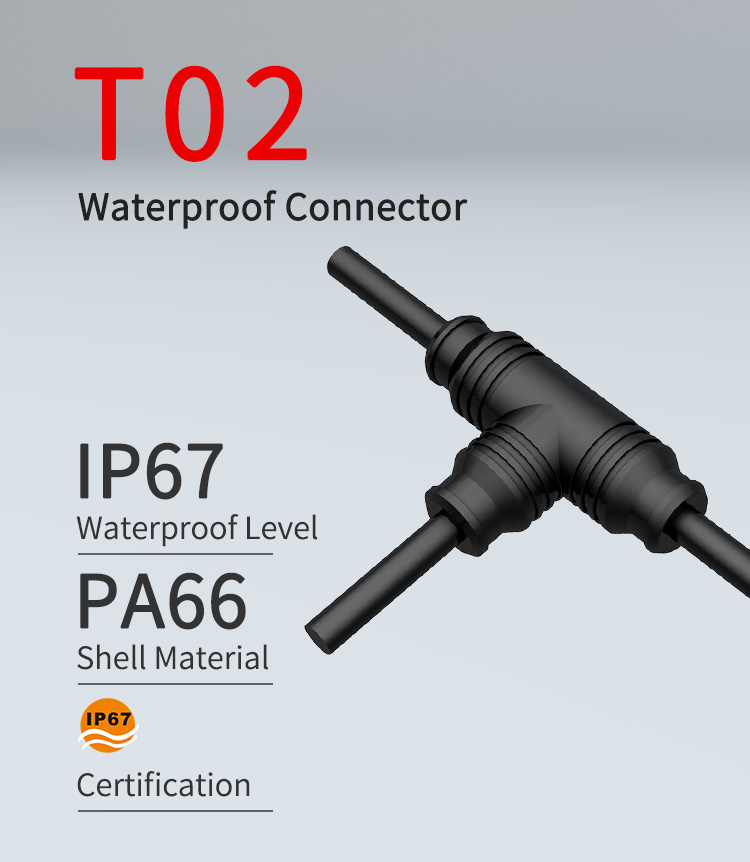

Electrical Wiring LED Belt Light 2 3 4 5 Pin T Shape Plastic Waterproof Connector

Brand HYFD
Application LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens and so on
Types Waterproof plug/waterproof connectors/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug
Interface Type AC/DC
Shape T shape, round
Process Stamping/welding/injection molding
IP Level IP68
Contact Material Copper or PCB board
Joint Material Nylon PA66
Pin Number 2 pins, 3 pins, 4 pins, 5 pins
Cable Length As per required
Form Socket, plug stamping or injection after welding
Rated Voltage 300V
Rated Current 10A
Breakdown Voltage 1500V
Working Temperature -40 ~ 105℃
Wire Materials PVC, rubber, as per customer requirements
Color Black
Standard Item Joint is made of NYLON, over-molded with VDE PVC cable, cable regular length is 25cm each side. We can design as per your requirements.
Max Cable Diameter 8.0mm
Cable Length It can be customized as per your requirements.

FAQ

Q: What is the packing?
A: Well, we pack it in neutral cartons or as your requirements.


Q: Do you support OEM, ODM projects?
A: Yes for sure, we can offer OEM/ODM service, we can design the connectors as per your requirements or drawings and open new tooling for you.

Q: How does your factory control the quality?
A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out.

Q: Can I get some samples for testing before further orders?

A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see if to believe, we believe you will be satisfied with our products.

Q: Do you have certification for your connectors?

A: Yes, most of our connectors have CE/ROHS/IP67/IP68 certificates while some of them have TUV/UL certificates.

Q: Why choose us?

A: We are a factory focus on waterproof connectors for over 11years, we have:

1. 100% home made, competitive price and short lead time.

2. Strict quality control: we have IS09001, our connectors have CE/CQC/ROHS/IP67/IP68/TUV/UL certificates.
